80/105 LANDCRUISER - WELD ON REAR RAISE BRACKET - KIT
80/105 LANDCRUISER - WELD ON REAR RAISE BRACKET - KIT
80/105 LANDCRUISER - WELD ON REAR RAISE BRACKET - KIT
SKU: SC-001890
Toyota / Land cruiser / 80 Series
Toyota / Land cruiser / 105 Series

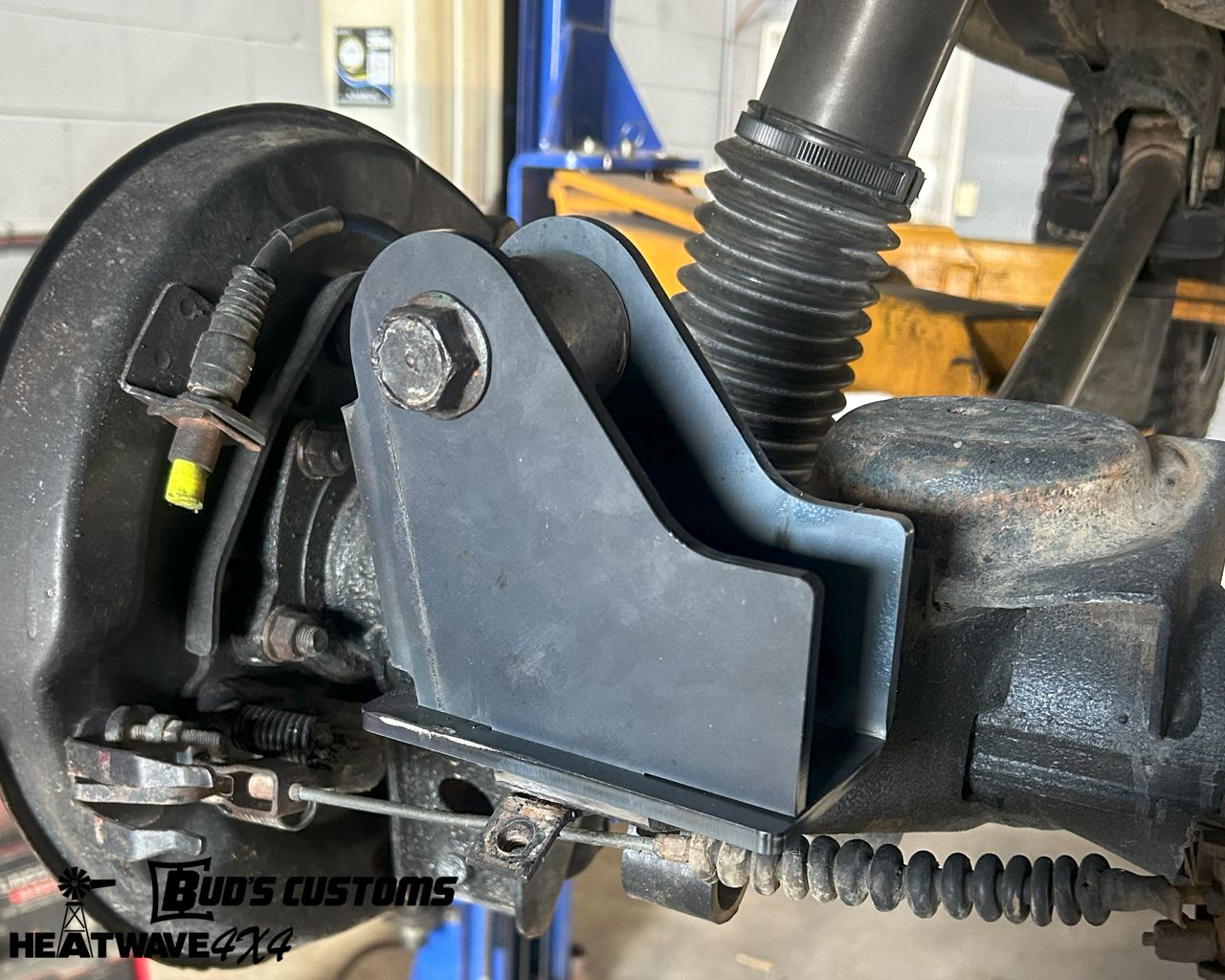

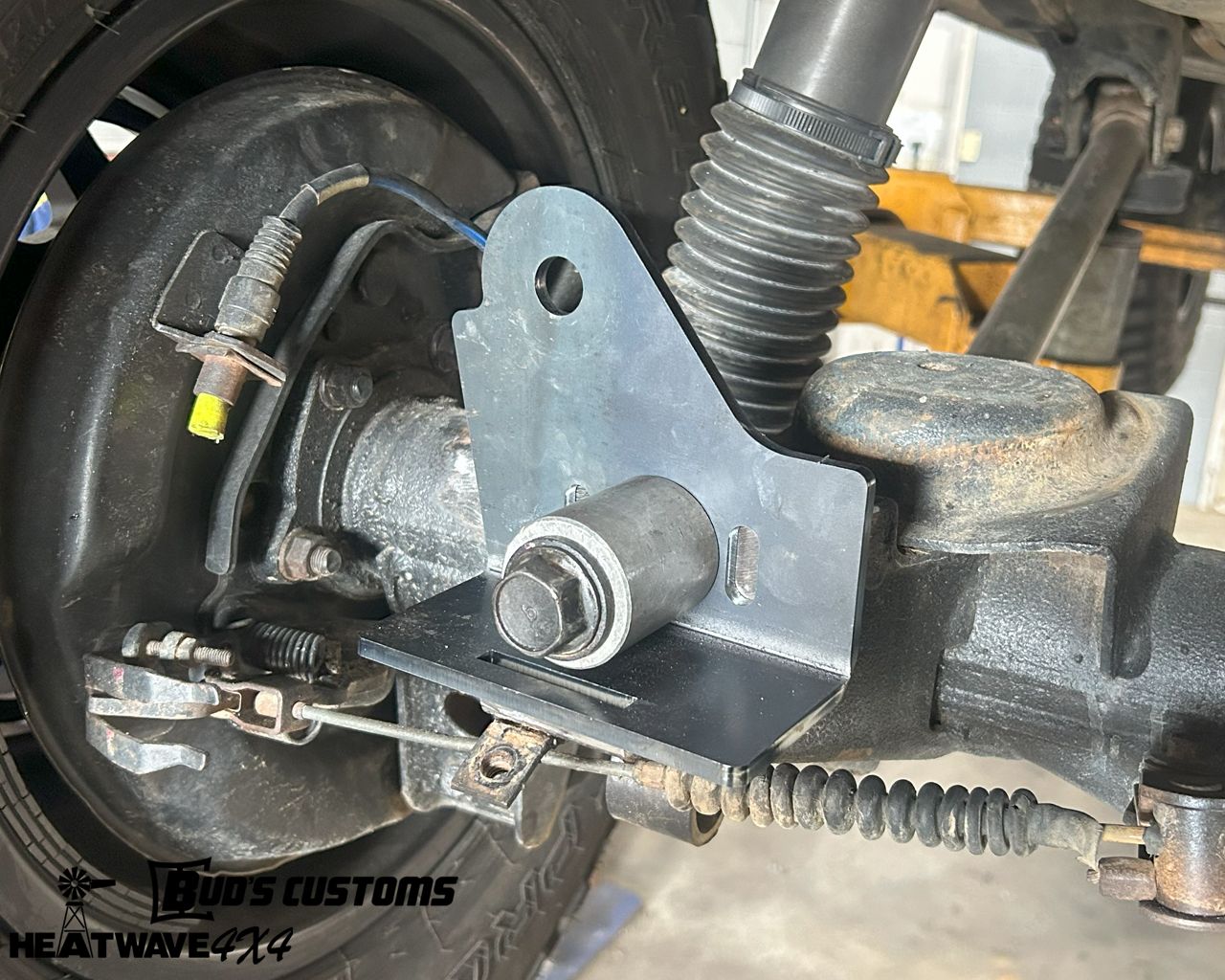

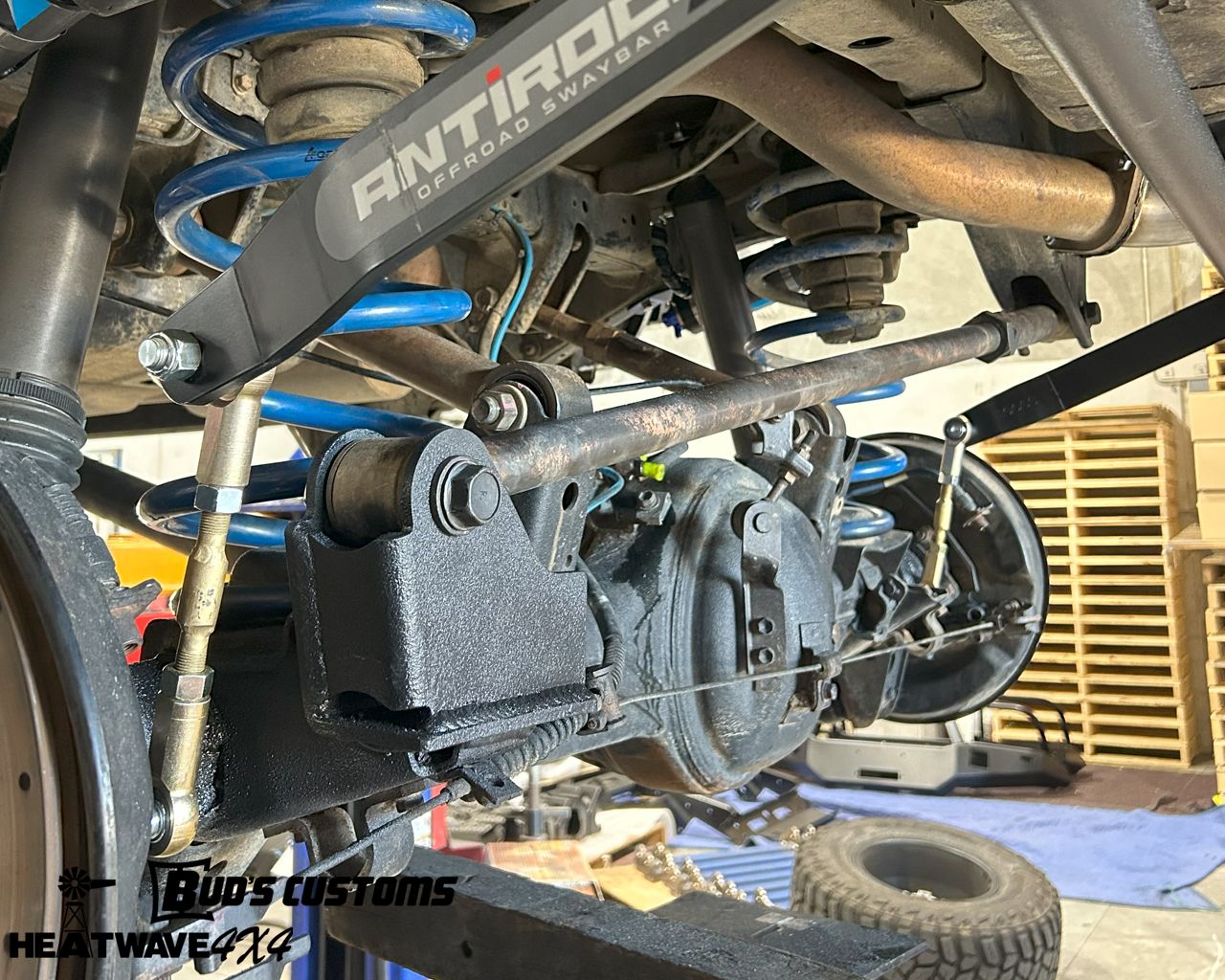

Here is our 80/105 Rear Weld on Panhard Raise Bracket Kit, used to replace your factory rear panhard mount with our new bracket which raises the panhard mount by 75mm and over by 40mm.
With lifted Landcruiser 80/105s this bracket will greatly improve the ride and handling of your vehicle both on and offroad. On a 5 link the roll axis is accepted as the centre of the panhard; by raising this it lessens the body roll feeling of your vehicle. By having the panhard starting in a flatter neutral position at ride heights is means the axle is pulled left to right less through its range of travel.
For example an average 105 series with 3” lift with our rear panhard raise fitted the roll axis is raised approx. 40mm and the lateral movement of on highway of up / down travel of 50mm each way reduces the left to right pull by approx. 8mm. This might not sound like much but genuinely makes a big difference behind the wheel both on and off road.
With moving the upper mount across only 40mm it will cycle without panhard hitting the chassis so no changes to bump stops should be required.

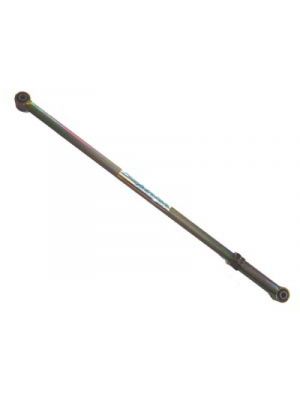

This is a weld on solution, so does not suit everyone you will need an adjustable rear panhard rod to fit this kit.

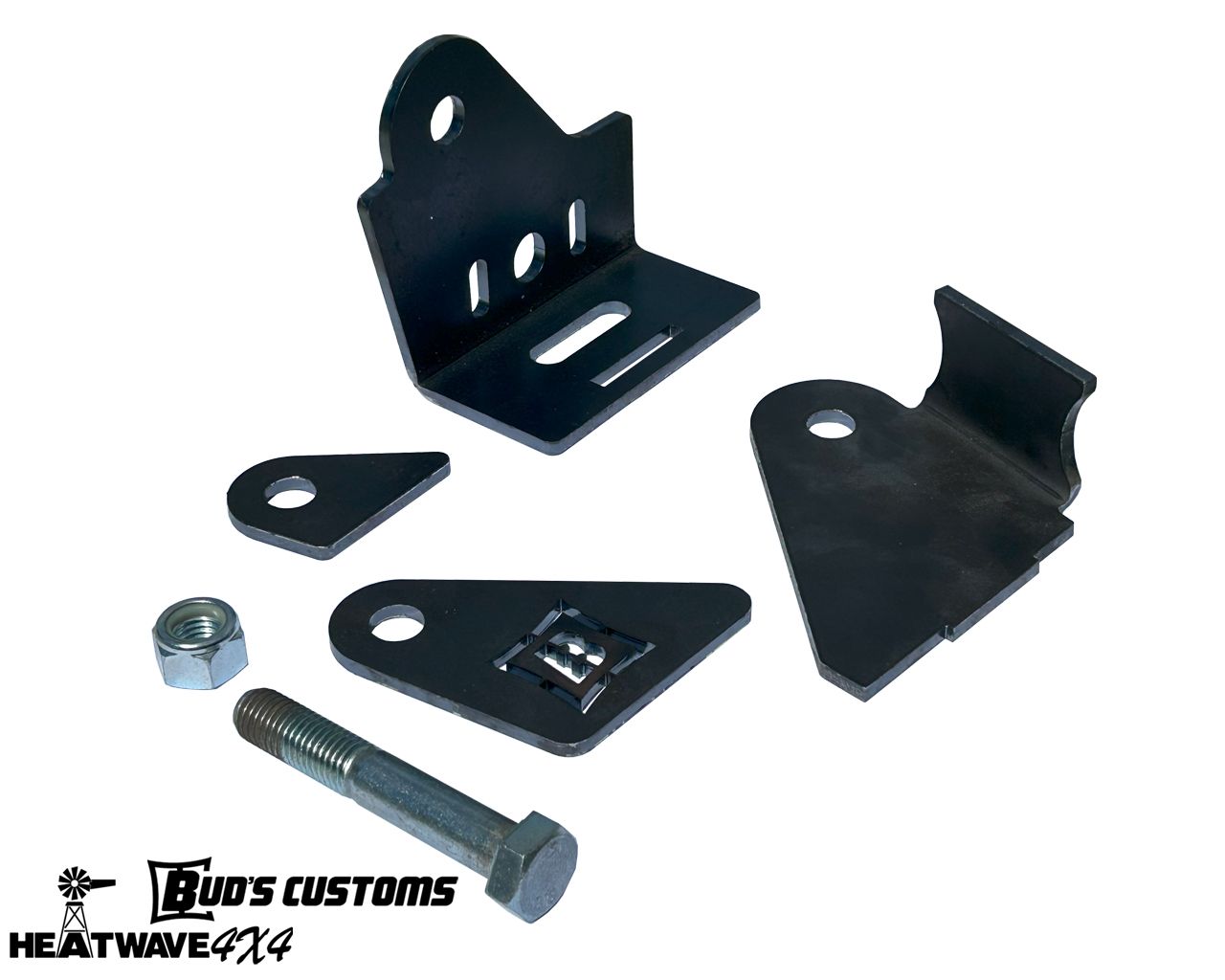

Kit includes:
- 4 x 6mm Laser Cut Plates
- 1 x New Panhard Bolt

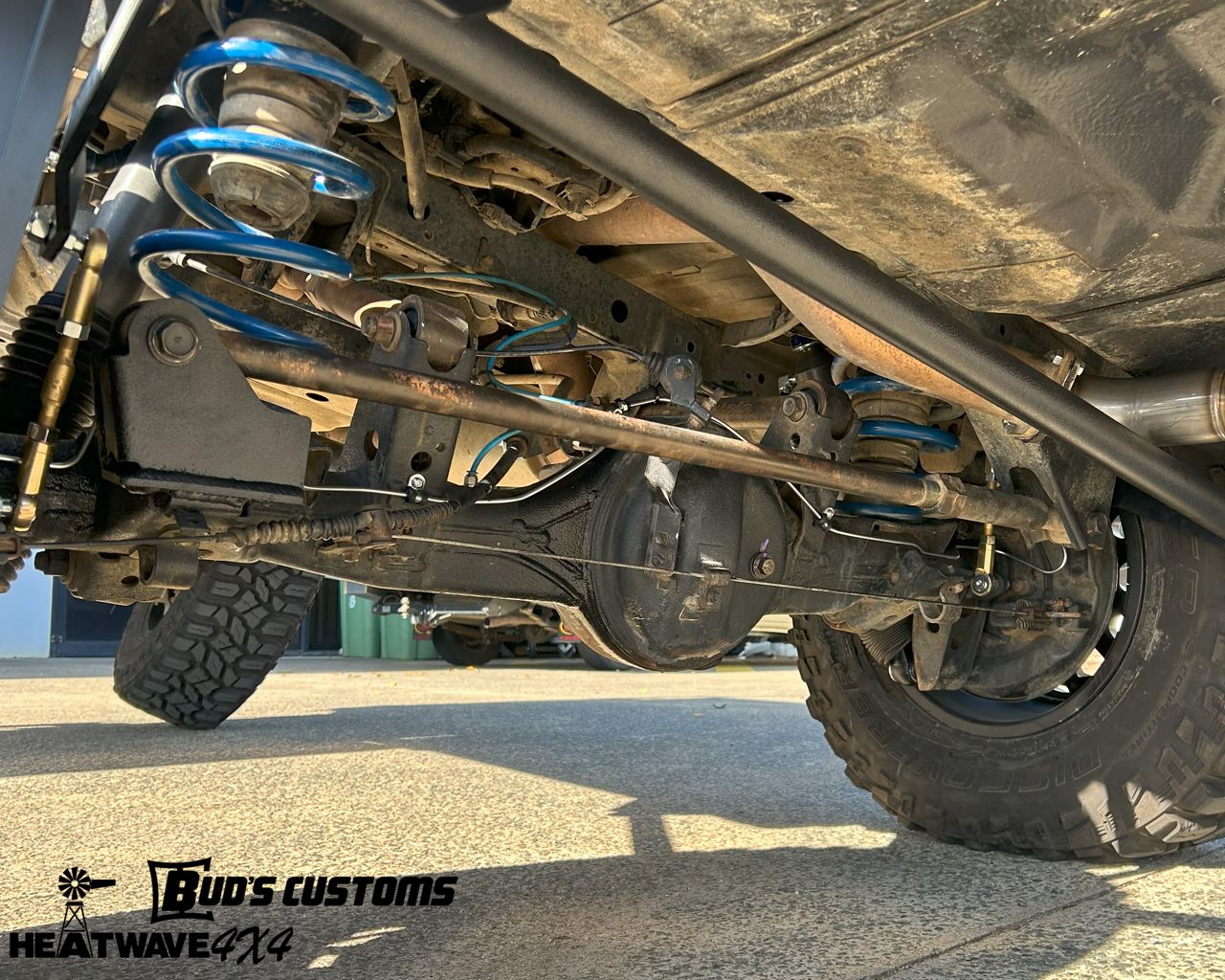

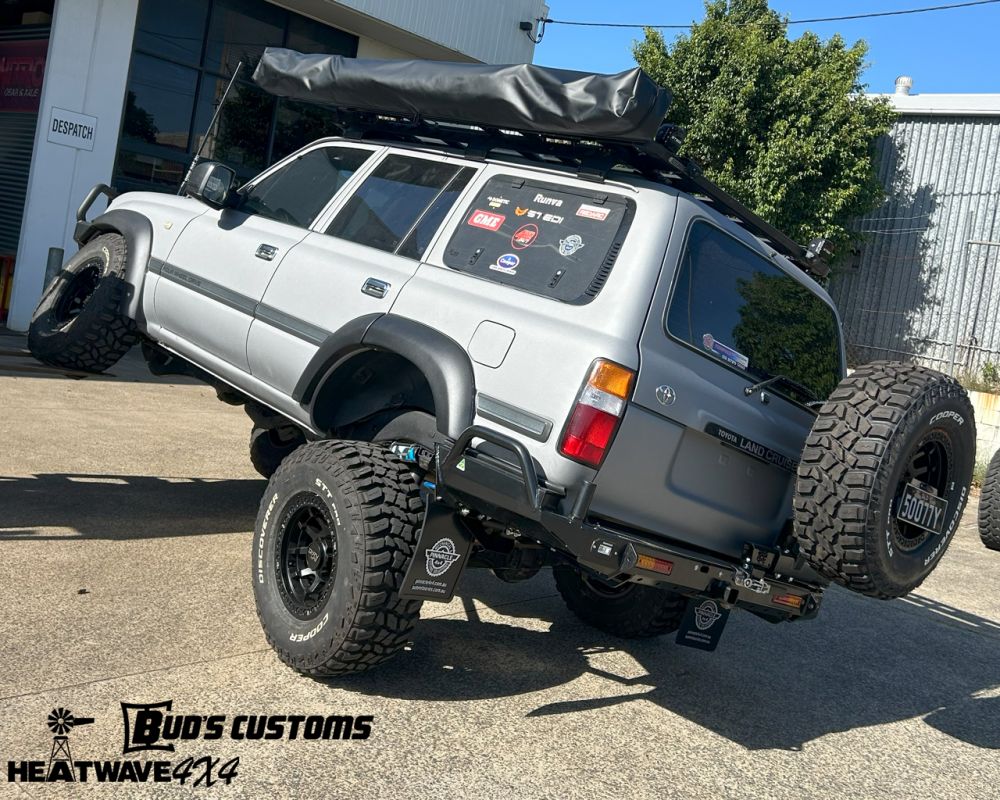

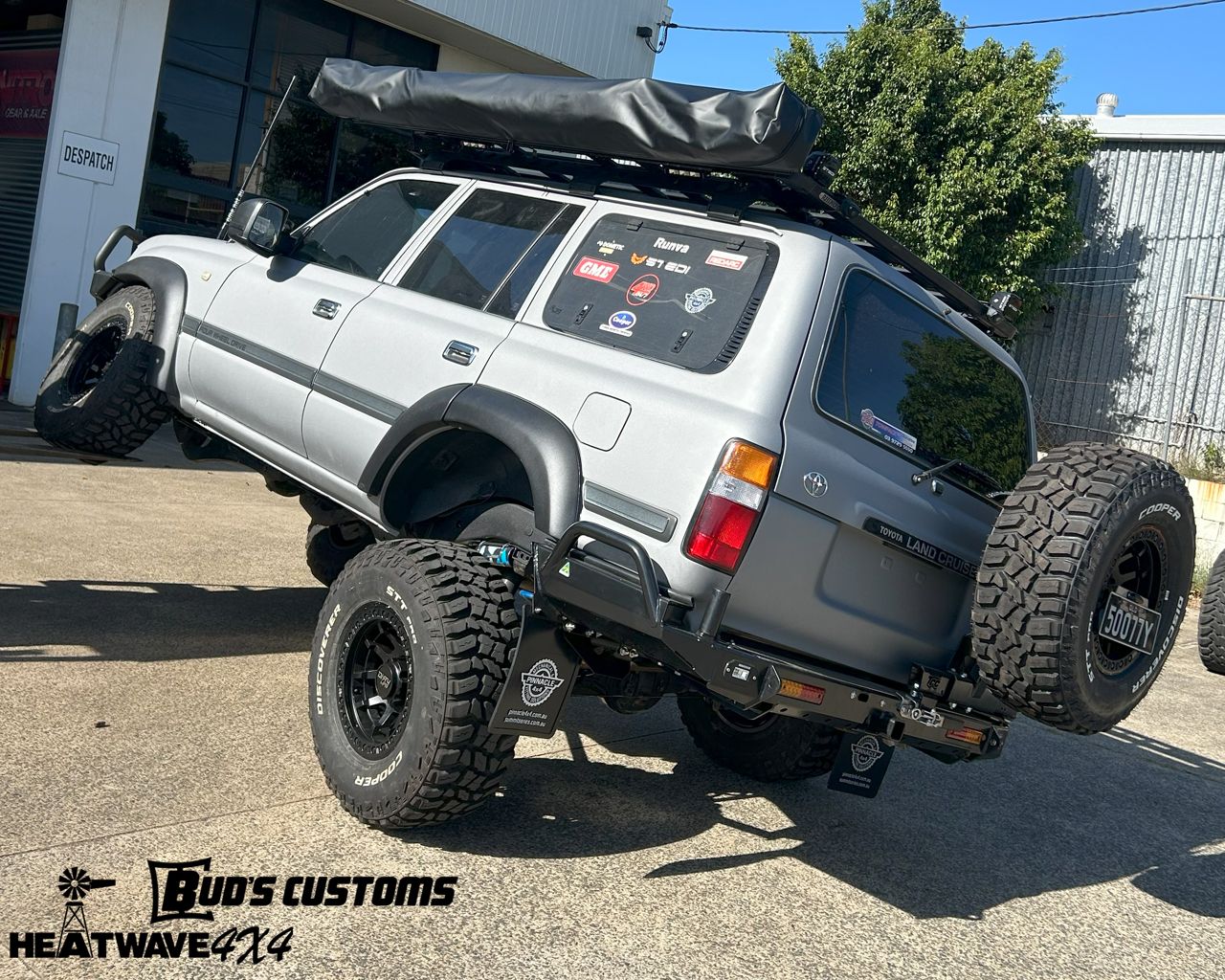

Same kit we used in Shauno's Sooty
